Input type ultrasonic vibration plate device
The input type ultrasonic vibration plate device is suitable for being placed in various specifications of the ultrasonic cleaning machine such as an ultrasonic cleaning machine, a single-slot ultrasonic cleaning machine, a desktop ultrasonic cleaning machine, an electrolytic ultrasonic cleaning machine, and the like.
The input type ultrasonic cleaning machine is also called: immersion type super

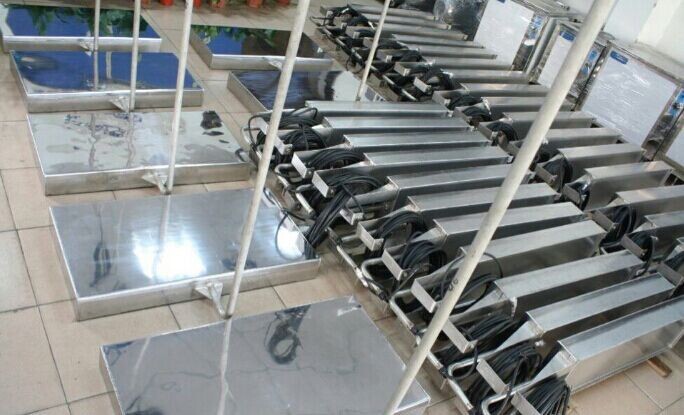

The input type ultrasonic vibration plate device is composed of a vibration plate and an ultrasonic generator.
The flange type ultrasonic vibration plate is easy to use, and its main features are easy to maintain and easy to install.
Ultrasonic vibration plate, the vibration plate material is imported SUS304, 2.5 m
Sales and production of pre-plating ultrasonic cleaning machine / plating equipment
Ultrasonic cleaning machine|Quality is guaranteed--Huizhou Zhanhong Environmental Protection Technology Co., Ltd.
Product Name: Input Ultrasonic Cleaner
Product model: ZH-1048ST
Input ultrasonic cleaning machine
The input type ultrasonic cleaning machine is also called: immersion type ultrasonic cleaning machine, ultrasonic vibration board, and also uses the principle of ultrasonic wave to achieve the cleaning effect.

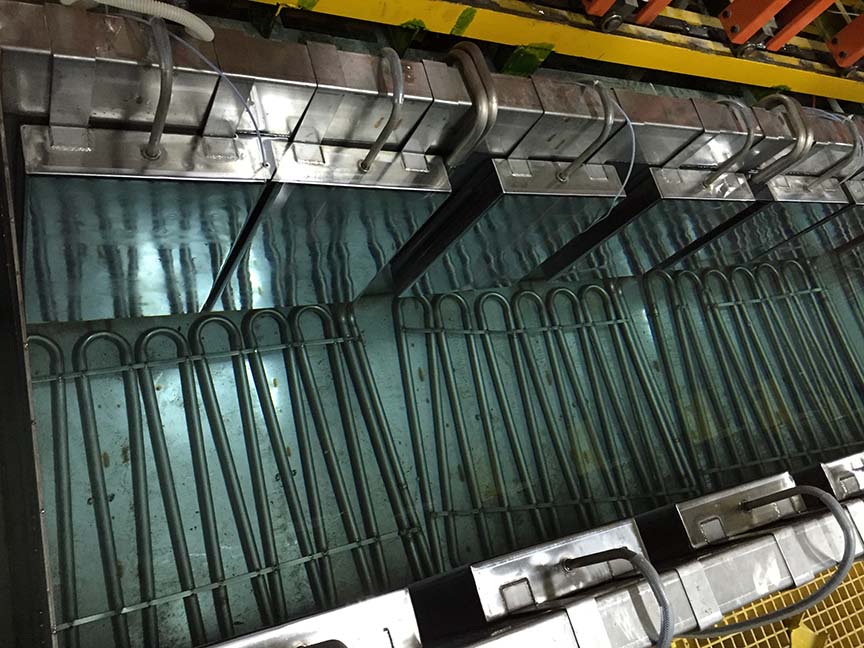

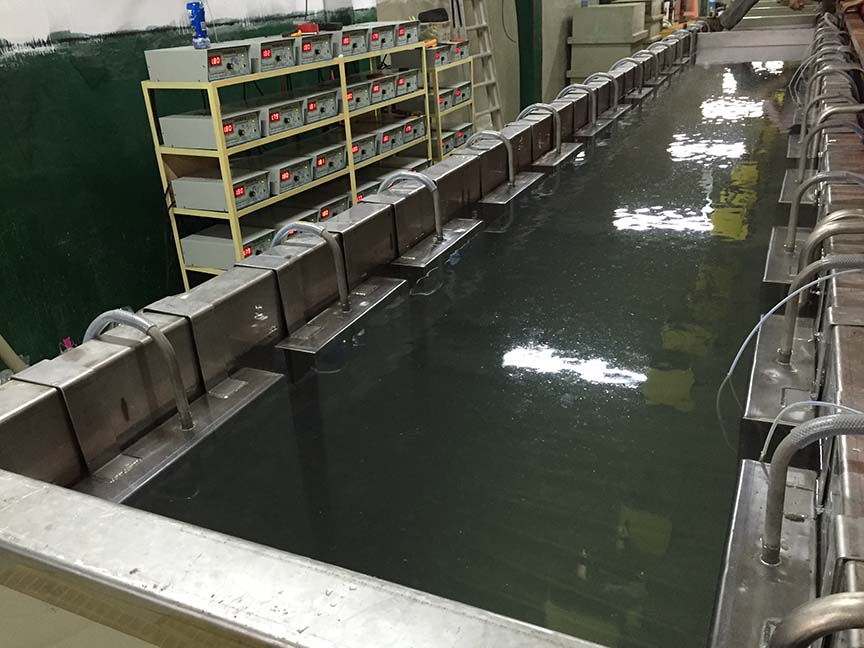

◆Advantages can be conveniently placed in the cleaning solution. It is usually used in large-scale electroplating production lines and various non-standard equipments. Degreasing, dedusting and wax removal before surface treatment of workpieces is convenient for maintenance and replacement. Bottom-mounted, side-mounted, overhead, etc.; flexible configuration, ultrasonic power ranging from a few hundred watts to several kilowatts.
◆Features: SUS 304L high-grade stainless steel cleaning shell Original Japan/Korea imported high-performance ultrasonic transducer full electronic ultrasonic control system (split type) Optional adjustment of ultrasonic power size for continuous long-term work safety and easy operation by customer Require design and manufacture
◆Applicable objects: Wide range of applications: hardware, electroplating, electronic, precision parts, watches, jewelry, automotive industry, aerospace and other industries. An organic solvent, an environmentally friendly solvent, and an aqueous substrate solvent are used as a cleaning liquid.
Product Name: Electroplating ultrasonic cleaning machine shock plate
Product model: ZH-1036R
ZH-1036R input ultrasonic vibration plate / electroplating ultrasonic cleaning machine, please contact Mr. Dai 18933240779 if necessary.
◆ Shock plate size: L × W × H (mm) 800 × 380 × 90
◆ Scope of application: cleaning before plating, post-plating treatment, wax removal of watch case, glasses frame, glassware, metal stamping parts, mechanical parts, plumbing equipment, electronics, jewelry, watches, lighting, etc.
◆Structure: The input type ultrasonic vibration plate device is composed of two parts: the vibration plate and the ultrasonic generator. Viscous ultrasonic vibrators: 36, ultrasonic power is 1800W (power adjustable), frequency 28KHz, when the standard type of ultrasonic cleaning machine is not suitable for a specific working environment, in addition to special specifications can be customized, can also be used input shock Board device. In the existing equipment, if there is a common cleaning tank, the vibration plate device can be added and converted into an ultrasonic cleaning machine. All stainless steel structure, acid and alkali resistant, beautiful and durable. The split structure is adopted, and the high frequency connection with the socket is adopted between the vibration plate and the ultrasonic generator, and the use and maintenance are convenient. The installation arrangement is flexible, and the ultrasonic radiation surface can be arranged on the bottom surface and the side surface of the cleaning tank as needed.
◆ Ultrasonic generator features: Digital frequency synthesis technology under microcomputer control, continuous adjustment of ultrasonic power (digital display)
With perfect protection: overheating, overcurrent protection, and a four-digit timer to make the time control accurate to the second.
Also has a sweep function.
◆Configuration: Distribution ultrasonic generator storage rack
Note: Various non-standard model sizes can be customized according to customer requirements.
Product Name: High-power ultrasonic vibration plate
Product model: ZH-1024R
ZH-1024R input type ultrasonic vibration plate|QQ:349654027
◆ Vibration plate size: L × W × H (mm) 500 × 400 × 100
◆Applicable: product cleaning before plating, post-plating treatment, wax removal of watch case, glasses frame, glassware, metal stamping parts, mechanical parts, plumbing equipment, electronics, jewelry, watches, lighting and other industries.
◆ Structure:
1. The input type ultrasonic vibration plate device is composed of two parts: a vibration plate and an ultrasonic generator. Sticky ultrasonic vibrator: 24 / 50W,
Ultrasonic power is 1200W (power adjustable), frequency 28kHz / 40 kHz, suitable for placement in a variety of tanks.
2, the working position can be divided into top shock, side shock, and bottom shock, seismic, and multilateral shock to achieve different cleaning effects.
3, using SUS304L# thick stainless steel plate, the surface is plated with hard chrome, strong acid and alkali are made of titanium plate.
4, mechanized seed nails, reinforcement encryption welding, beautiful and practical.
5. The ultrasonic generator and the shock plate are connected by a split type, which is convenient for maintenance and maintenance. Work continuously for 24 hours to adapt to mass production.
◆ Ultrasonic generator features: Digital frequency synthesis technology under microcomputer control, continuous adjustment of ultrasonic power (digital display)
With perfect protection: overheating, overcurrent protection, and a four-digit timer to make the time control accurate to the second.
Also has a sweep function.
Note: Various non-standard model sizes can be customized according to customer requirements. Please contact if necessary.
Product Name: Ultrasonic cleaning machine
Product model: ZH-1018R
Supply ZH-1018R input ultrasonic vibration board / ultrasonic cleaning machine
◆ Ultrasonic vibration plate size: L × W × H (mm) 410 × 310 × 100
◆Applicable: product cleaning before plating, post-plating treatment, wax removal of watch case, glasses frame, glassware, metal stamping parts, mechanical parts, plumbing equipment, electronics, jewelry, watches, lighting and other industries.
◆Structure: 1. The input type ultrasonic vibration plate device is composed of two parts: the vibration plate and the ultrasonic generator. Sticky ultrasonic vibrator: 18 / 50W,
Ultrasonic power is 900W (power adjustable), frequency 28kHz / 40kHz, suitable for placement in a variety of tanks.
2, the working position can be divided into top shock, side shock, and bottom shock, seismic, and multilateral shock to achieve different cleaning effects.
3, using SUS304L# thick stainless steel plate, the surface is plated with hard chrome, strong acid and alkali are made of titanium plate.
4, mechanized seed nails, reinforcement encryption welding, beautiful and practical.
5. The ultrasonic generator and the shock plate are connected by a split type, which is convenient for maintenance and maintenance. Work continuously for 24 hours to adapt to mass production.
◆ Ultrasonic generator features: Digital frequency synthesis technology under microcomputer control, ultrasonic power continuously adjustable (digital display),
Complete protection: overheating, overcurrent protection, and a four-digit timer for precise time control to seconds.
Sweep function.
Note: Various non-standard model sizes can be customized according to customer requirements. Please contact if necessary.
Product Name: Input ultrasonic vibration board / ultrasonic cleaning machine
Product model: ZH-1012R
ZH-1012R input ultrasonic vibration board | ultrasonic cleaning machine
◆ Ultrasonic vibration plate size: L × W × H (mm) 300 × 300 × 100
◆Applicable: product cleaning before plating, post-plating treatment, wax removal of watch case, glasses frame, glassware, metal stamping parts, mechanical parts, plumbing equipment, electronics, jewelry, watches, lighting, etc.
◆Structure: 1. The input type ultrasonic vibration plate device is composed of two parts: the vibration plate and the ultrasonic generator. Sticky ultrasonic vibrator: 12 / 50W,
Ultrasonic power is 600W (power adjustable), frequency 28kHz / 40kHz, suitable for placement in a variety of tanks.
2, the working position can be divided into top shock, side shock, and bottom shock, seismic, and multilateral shock to achieve different cleaning effects.
3, using SUS304L# thick stainless steel plate, the surface is plated with hard chrome, strong acid and alkali are made of titanium plate.
4, mechanized seed nails, reinforcement encryption welding, beautiful and practical.
5. The ultrasonic generator and the shock plate are connected by a split type, which is convenient for maintenance and maintenance. Work continuously for 24 hours to adapt to mass production.
◆ Ultrasonic generator features: Digital frequency synthesis technology under microcomputer control, ultrasonic power continuously adjustable (digital display),
Complete protection: overheating, overcurrent protection, and a four-digit timer for precise time control to seconds.
Sweep function.
Note: Various non-standard model sizes can be customized according to customer requirements. Please contact if necessary.
Product Name: Low power ultrasonic vibration board
Product model: ZH-1006R
ZH-1006R input ultrasonic vibration board
◆ Ultrasonic vibration plate size: L × W × H (mm) 300 × 190 × 100
◆Applicable: pre-plating treatment, watch case strap wax removal, glasses frame, glassware, metal stamping parts, mechanical parts, plumbing
Product cleaning in devices, electronics, jewellery, watches, lighting, etc.
◆Structure: 1. The input type ultrasonic vibration plate device is composed of two parts: the vibration plate and the ultrasonic generator. Sticky ultrasonic vibrator: 6 / 50W,
Ultrasonic power is 300W (power adjustable), frequency is 28KHz/40kHz, suitable for placement in tanks of various specifications.
2, the working position can be divided into top shock, side shock, and bottom shock, seismic, and multilateral shock to achieve different cleaning effects.
3. It is made of SUS316L# thick stainless steel plate, the surface is plated with hard chrome, and the strong acid and alkali are made of titanium plate.
4, mechanized seed nails, reinforcement encryption welding, beautiful and practical.
5. The ultrasonic generator and the shock plate are connected by a split type, which is convenient for maintenance and maintenance. Work continuously for 24 hours to adapt to mass production.
◆ Ultrasonic generator features: Digital frequency synthesis technology under microcomputer control, ultrasonic power continuously adjustable (digital display),
Complete protection: overheating, overcurrent protection, and a four-digit timer for precise time control to seconds.
Sweep function.
Note: Various non-standard model sizes can be customized according to customer requirements. Please contact if necessary.
