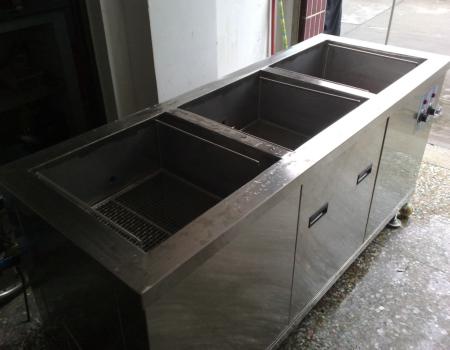

Product Name: Three-tank part degreasing ultrasonic cleaning machine
Product model: ZH-3048
ZH-3048 parts degreasing ultrasonic cleaning machine equipment range: hardware, electronics, watches, machinery, tools, glasses, jewelry, semiconductor wafers, polyester spun silk and polyester filter and glassware cleaning.
ZH-3048 three-tank ultrasonic cleaning machine Cleaning process: ultrasonic rough washing----ultrasonic fine washing---water rinsing
◆Inner groove size: L × W × H (mm) 600 × 400 × 450
Dimensions: L × W × H (mm) 2000 × 600 × 700
◆Material: It is made of imported SUS304δ2.0mm stainless steel plate, and the vibration surface is made of SUS316δ2.5mm stainless steel plate.
The outer plate is made of stainless steel.
◆Structure: The whole machine is equipped with 1〝 drainage ball valve at the bottom of the moving caster, and 48 ultrasonic vibrators at the bottom. The ultrasonic power is
2400W (power adjustable), frequency 28KHz, the whole machine is all stainless steel structure.
◆Ultrasonic heating system: heating with heating plate, heating power 4KW, mechanical automatic constant temperature control 30~110 °C adjustable.
◆Electrical system: electrical components are imported high quality parts
◆Ultrasonic generator: digital frequency synthesis technology under microcomputer control, continuous adjustment of ultrasonic power (digital display)
Complete protection: overheating, overcurrent protection, and a four-digit timer to make time control accurate to the second.
With sweep function.
◆Power supply: 380V/50Hz
◆Configuration: 1 cylinder head and 1 wash basket
Note: Various non-standard model sizes can be customized according to customer requirements. Please contact if necessary.
