Industrial series pure water machine equipment
ZH-URE series ultra-pure water system combines advanced ultrafiltration membrane, reverse osmosis filtration technology and EDI ion ion organic technology to achieve high-performance pure water equipment for separating and removing various anions and cations in water. The system is controlled by PLC modularization, and the water quality is stable and high purity. It is suitable for the production of various industrial ultrapure water without the use of acid-base regeneration deionization industrial pure water machine equipment/EDI deionization device to clamp the ion exchange resin. Anion / cation exchange membrane / industrial pure water machine parts consumables / professional supply of industrial pure water machine parts / industrial pure water machine filter / pure water machine supplies, etc.
According to the use, the following classifications are available:
1. Household series RO straight drinking pure water machine
2. Industrial special multi-media filter
3. Multi-media filter, also known as mechanical filter, the main function is to remove suspended solids in water
4. Pure water special 78 Yang Yin bed equipment
5. Salts contained in raw water such as Ca(HCO3)2, MgSO4 and other calcium and magnesium sodium salts are exchanged in flow
6. Raw water, pretreatment filtration equipment
7. Quartz sand mechanical filtration equipment uses quartz sand as a filter medium, which is filtered at a certain pressure.
8. Reverse osmosis industrial water purifier equipment, reverse osmosis is to use sufficient pressure to make the solvent in the solution (generally often referred to as water) through reverse osmosis
9. Optical, industrial pure water machine equipment
10. ZH-URE series ultra-pure water system is advanced ultrafiltration membrane, reverse osmosis filtration technology and reverse osmosis industrial water purifier equipment
Reverse Osmosis (RO) is a reverse migration of infiltration

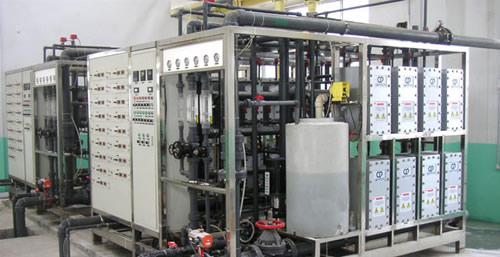

Product Name: EID deionization industrial pure water machine equipment
Product model: EID deionization equipment
product manual:
EDI deionization works:
The EDI electrodeionization device clamps the ion exchange resin between the anion/cation exchange membrane to form an EDI unit. The working principle of EDI is shown in the figure. In the EDI assembly, a certain number of EDI units are separated by a mesh to form a concentrated water chamber. A female/positive electrode is also provided at both ends of the unit group. Under the push of direct current, the anions and cations in the water flow through the fresh water chamber pass through the anion-cation exchange membrane and enter the concentrated water chamber to be removed in the fresh water chamber. The water passing through the concentrated water chamber takes the ions out of the system and becomes concentrated water.
Introduction of EDI Electrodeionization Equipment Technology:
EDI electrodeionization equipment generally uses secondary reverse osmosis (RO) pure water as the EDI feed water. EDI pure water resistivity can be as high as 17M Ω.cm (25 ° C), EDI equipment is suitable for the preparation of ultra-pure water with a resistivity of 10-18.2M Ω.cm (25 ° C).
The development of EDI deionization technology:
In recent decades, mixed bed ion exchange technology has been the standard process for the preparation of ultrapure water. Since it requires periodic regeneration and uses a large amount of chemicals (acid, alkali) and pure water in the regeneration process, and causes certain environmental pollution, it is necessary to develop an ultra-pure water system without acid and alkali treatment.
Because traditional ion exchange has become increasingly incapable of meeting the needs of modern industry and environmental protection, EDI technology combining membrane, resin and electrochemical principles has become a revolution in water treatment technology. The regeneration of its ion exchange resin uses electricity, which eliminates the need for acid and alkali, and is therefore more environmentally friendly in today's world.
Characteristics of EDI electrodeionization equipment:
High and stable water quality, continuous operation, simple and safe No shutdown due to regeneration.
Regeneration without acid or alkali chemicals Operation cost is lower than that of mixing bed Small occupation area.
No sewage discharge Easy to achieve full automatic control.

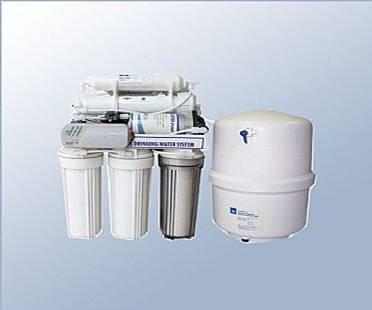

Product Name: Household series RO straight drinking pure water machine
Product model: household RO straight drinking pure water machine
Household RO straight drinking pure water machine
Product introduction
1. Adopt the world's first brand DOW American Dow FILNTEC TFC RO film.
2.Using ultra-static pressure pump, the power is only 14W, it is very energy-saving, the water is automatically shut down, the water is automatically water-free, the use is simple, completely sealed, and there is no secondary pollution.
3. 50 gallons (189 liters) of water per day for daily use by a family of five or 20 people for office use. The cost of water production is low.
4. Using the world's leading ultra-thin reverse osmosis water treatment technology, the reverse osmosis membrane has a filtration pore of only one thousandth of a centimeter, which can filter all bacteria, E. coli, heavy metals and other substances. The comprehensive filtration rate of the membrane can reach more than 90%. Quality assurance, each unit undergoes strict quality inspection. Excellent reliability and durability.
5. Perfect five-stage filtration design, the water quality is sweet and delicious.
use:
Can be directly eaten, clear and sweet.
It can be used for cooking, making soup, making tea, brewing coffee and juice, and has a unique taste.
Steaming face, skin care and hair care with pure water is beneficial to beauty care.
Adults often drink pure water to avoid gallstones and lower cholesterol.
Model / gallon Water (L / day) Scope of application
50 189 family
150 567 family
300 1134 office, factory mine
400 1512 Workshop

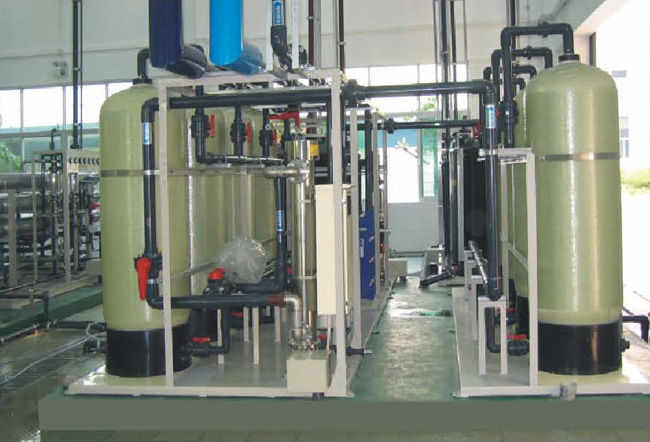

Product Name: Raw water, pretreatment filtration equipment
Product model: raw water pretreatment filter equipment
Raw water pretreatment filtration equipment
Quartz sand mechanical filter device overview
Quartz sand mechanical filtration equipment uses quartz sand as a filter medium. Under a certain pressure, the turbidity water is filtered through a certain thickness of granular or non-granular quartz sand to effectively remove suspended solids and organic matter in water. A water treatment device that clarifies water by colloidal particles, microorganisms, chlorine, odor, and some heavy metal ions. According to different water production, different meshes (quartz sand particles with different diameters) are required. The activated carbon filter composed of activated carbon and the iron-manganese filter composed of manganese sand are collectively called multi-media filters. They are used for water treatment to remove turbidity, softened water, and pre-treatment of pure water. The effluent turbidity can reach below 3 degrees.
Application range of quartz sand mechanical filter device
As a kind of filtration method in multi-media filters, quartz sand filter is often used together with activated carbon filter because quartz sand filter can remove suspended matter and solid particles in water. Suspended solids, as well as non-colloidal solids that are insoluble in water. Activated carbon filters can deodorize, decolorize, dechlorinate, remove organics, heavy metals, synthetic detergents, viruses and radioactive materials. It is a kind of conventional equipment for advanced treatment of water quality. It is also often used as a pre-treatment of reverse osmosis filtration equipment, super filtration equipment, nanofiltration equipment, microfiltration equipment, etc., for removing suspended matter and large particles in water. Extend the service life of the downstream filtration equipment.
Selection of quartz sand mechanical filter device
Quartz sand filter material can be made of FRP, carbon steel anti-corrosion or rubber, all stainless steel. The operation modes are fully automatic and manual. The automatic control is controlled by the automatic controller imported from the United States and the gas and hydraulic valves. The operation is simple and easy to maintain. The pretreatment devices for water treatment processes in various industries are widely used. . The size of the quartz sand filter is mainly determined by the amount of processing per day of the user. The selection of the material is determined according to the user's cost and application. The quartz sand filter device can determine the mid-reverse and recoil procedures according to the water quality of the raw water, and can adopt automatic timing backlash or manual recoil. After the multi-media filter is reclaimed, it will restore its filtering efficiency.
Application range
·Water filtration of swimming pools and water parks
·Massage pool water filtration
·Seawater, freshwater aquaculture
·Industrial water purification
·Pretreatment of drinking water
Raw water pretreatment filtration equipment----raw water pretreatment filtration equipment Filter Water treatment equipment Shenzhen water treatment equipment Shajing water treatment equipment manufacturers
Product Name: Pure water special 78 Yang Yin bed equipment
Product model: ZH-780
ZH-780 Yang Yin bed equipment
The 780 automatic bed de-salting system is made by American AUTOTROL multi-way valve. The whole plastic structure is resistant to acid and alkali corrosion. The whole system is controlled by a centralized control box. The basic principle of the system is ion exchange. The system contains a cation exchange column and an anion exchange column. The cation exchange column is regenerated with raw water, and the anion exchange column is regenerated with cation exchange column.
The system water quality exceeds the standard and the water supply is automatically stopped to regenerate. The resin tank is made of pressure-resistant FRP material and lined with high-density seamless polyethylene, which is non-polluting. The system uses built-in conductivity detectors to effectively monitor the water quality of the produced water.
System features: 1, low power consumption, large water production; 2, simple operation, low investment costs; 3, compact structure, small footprint; 4, simple installation and maintenance.
System effluent water quality: 1 ~ 20μs / cm
●The following only lists the commonly used models, which can be manufactured according to specific requirements.
Model
AUTOTROL valve water production
M3/h tank specifications
Mm size mm
Length, width, height
780-2 0.5-0.8 φ200×890 1440 580 355
780-3 0.8-1 φ255×890 1618 608 355
780-4 1-1.5 φ255×1370 1618 608 368
780-5 1.5-2 φ305×1320 1468 658 368
780-6 2-2.5 φ330×1370 1690 813 610
The anion and cation exchangers, mixed ion exchangers and sodium ion exchangers produced by our company are respectively made of PVC plastic material, plexiglass material, carbon steel, glass steel and stainless steel lining anti-corrosion materials. The control is manual and automatic. Each model is described below.
1. Yang anion exchanger
Yang anion exchanger Specification (mm) Water output m3/h Working pressure MPa Dimensions φ*H(mm)
Φ200 0.5-1 stainless steel and carbon steel column operating pressure is 0.6MPa
(Glass steel column operating pressure 0.6MPa, different dimensions of the right table) 200*2000
Φ300 2 324*2000
Φ400 3 430*2000
Φ500 4-5 530*2000
Φ600 5-6 640*2000
Φ750 8-10 800*2000
Φ900 12-15 900*2000
Φ1000 15-20 1012*2800
Φ1500 20-50 1516*4000
Φ2000 50-80 2016*4500
2, mixed ion exchanger
Mixed ion exchanger Specifications (mm) Water output m3/h Working pressure MPa Dimensions φ*H(mm)
Φ300 2 plexiglass column operating pressure is 0.2MPa
Stainless steel and carbon steel column operating pressure is 0.6MPa 324*2000
Φ400 3 430*2000
Φ500 4-5 530*2000
Φ600 5-6 600*2000
Φ1000 10-15 1000*3200
Φ1500 20-50 1500*4200
Comparison of industrial pure water preparation methods
Ion exchange
Need acid-base regeneration
Less one-time investment
Water quality 0.1-40μ S/cm
Low salt raw water is suitable
Reverse osm
No chemical regeneration
continue to operate
Stable water production
Low operating costs
Electrodialysis
No need for acid-base regeneration
continue to operate
Desalination rate 50-80%
The salts contained in the raw water such as Ca(HCO3) 2, MgSO4 and other calcium magnesium salts, when flowing through the exchange resin layer, the cationic Ca2+, Mg2+ and the like are replaced by the active groups of the cation resin, anions HCO3-, SO42-, etc. It is replaced by the active group of the anion resin, so that the water is purified. If the content of bicarbonate in the raw water is high, a degassing tower should be installed in the middle of the anion and cation exchange columns to remove the CO2 gas and reduce the load on the anion bed.
Product Name: Optical, industrial pure water machine equipment
Model: ZH-WT series pure water machine
ZH-WT series pure water machine
product description
ZH-WT-URE series ultra-pure water system combines advanced ultrafiltration membrane, reverse osmosis filtration technology and EDI ionization organic technology to achieve high-performance pure water equipment for separating and removing various anions and cations in water. . The system is controlled by PLC modularization, and the water quality is stable and high purity. It is suitable for the production of various industrial ultrapure water without acid and alkali regeneration.
Features
■ Tracked workpieces are used for balanced and reliable operation.
■ Set up, down, left, and right for continuous rinsing.
■ Fully enclosed design, the whole process is completed automatically by PLC control program
■ The whole machine is designed for full pass and takes up little space.
■ Use an all-water solvent-based environmentally friendly cleaning process.
Industrial pure water machine----industrial reverse osmosis pure water machine RO industrial pure water machine

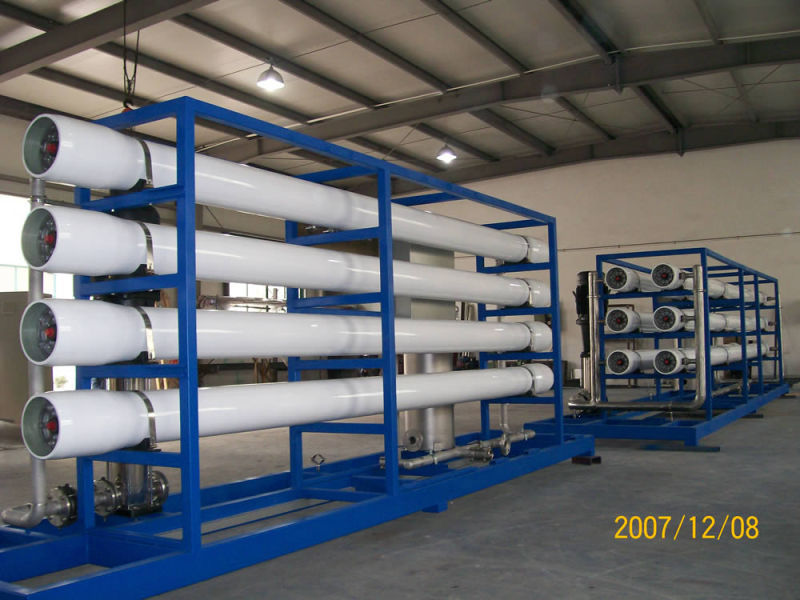

Product Name: 15T reverse osmosis industrial pure water machine equipment
Product model: ZH-1500R/H
ZH-1500R/H reverse osmosis pure water machine
Comparison of industrial pure water preparation methods
Ion exchange
Need acid-base regeneration
Less one-time investment
Water quality 0.1-40μ S/cm
Low salt raw water is suitable
Reverse osm
No chemical regeneration
continue to operate
Stable water production
Low operating costs
Electrodialysis
No need for acid-base regeneration
continue to operate
Desalination rate 50-80%
Reverse osmosis is to separate the solvent (usually referred to as water) in the solution through a reverse osmosis membrane (a semi-permeable membrane) to separate it from the direction of permeation. It can be separated and purified by reverse osmosis method larger than osmotic pressure. And concentrated solution. The primary separation target for reverse osmosis membranes is the range of ions in the solution.
The reverse osmosis separation process has the following advantages:
1 no heating, no phase change;
2 less energy consumption;
3 The device is small in size, simple in operation and strong in adaptability;
4 No pollution to the environment.
Reverse osmosis pure water systems use different processes depending on the source water quality. After the tap water is treated by the first-stage reverse osmosis system, the conductivity of the produced water is <10μS/cm, and the conductivity of the produced water after the second-stage reverse osmosis system is <5μS/cm or lower. After the reverse osmosis system, the ion exchange equipment or The EDI device can prepare ultrapure water to a resistivity of 18 megohms 25 ° C (about 0.056 μS/cm).
The core part of the reverse osmosis pure water system is that the reverse osmosis membrane is also the key to determine the quality of the produced water, but the pros and cons of the reverse osmosis system pretreatment process (also known as the pretreatment system) is the key to determine the stable operation of the reverse osmosis system.
Reverse osmosis pure water systems are widely used in:
Water for the electronics industry, electronic components, integrated circuits, silicon wafers, display tubes, etc.
Water for the pharmaceutical industry, large infusions, injections, tablets, biochemical products, equipment cleaning, etc.
Process water in the chemical industry, chemical circulating water, chemical product manufacturing, etc.
Boiler feed water in power industry, thermal power boiler, mine low and medium pressure boiler power system
Water for food industry Drinking pure water, beverages, beer, liquor, health products, etc.
Seawater, brackish water desalination Island, ship, offshore drilling platform, brackish water area
Drinking pure water, real estate, community, enterprises, etc.
Other process water, automotive, home appliance coating, coated glass, cosmetics, fine chemicals, etc.
The RO pure water machine produced by our company designs and manufactures the reverse osmosis system according to the user's requirements. The general water production limit is 0.125m3/hr, the water recovery rate is generally over 75%, the salt rejection rate is >97%, and the key equipment adopts imported products. The quality is reliable, the scalability is strong, the structure is reasonable, the land occupation is small, the water utilization rate is high, the energy consumption is low, and the operation and maintenance are simple. The electronic control part is PLC programmable automatic control produced by LG Company of South Korea. Reverse osmosis pure water systems use different processes depending on the source water quality. After the tap water is treated by the first-stage reverse osmosis system, the conductivity of the produced water is <10μS/cm, and the conductivity of the produced water after the second-stage reverse osmosis system is <5μS/cm or lower. After the reverse osmosis system, the ion exchange equipment or The EDI device can prepare ultrapure water to a resistivity of 18 megohms (conductivity = 1 / resistivity).
Reverse osmosis equipment advantages
1. The recovery rate of RO machine design is >75%;
2, RO water low pressure protection, to prevent high pressure pump water shortage;
3. The RO system is automatically flushed when it is turned on, and the system is automatically flushed for 1 hour.
4. The RO system automatically shuts down when pre-processing regeneration and backwashing; the original water pump starts automatically;
5. When the water level of the original water tank is low or the water level of the pure water tank is high, the RO machine is automatically shut down, and when the water level of the pure water tank is low, the RO machine is automatically turned on;
6. Set the fault alarm indication;
7, built-in PLC has lights, maintenance is easier;
Industrial pure water machine---1.5 tons reverse osmosis pure water machine Guangdong industrial pure water machine Guangzhou industrial pure water machine equipment Shenzhen pure water machine manufacturers
Product Name: 10T reverse osmosis industrial pure water machine equipment
Product model: ZH-RO-10
Product Name: Reverse Osmosis (RO) System
Model: AIR-RO-10
Type: Pure water treatment system->Industrial pure water system
Specifications:
Technical introduction
Reverse osmosis equipment:
Reverse Osmosis (RO), a reverse migration movement of permeation, is a separation method that separates the solute in the solution from the solvent by means of selective sequestration of the semipermeable membrane under pressure. In the water treatment process, inorganic ions, bacteria, viruses, organic matter and colloids in the water can be removed, which is an advanced and economical means for deep purification of water.
The reverse osmosis device is a widely used water treatment device, which has the advantages of small volume, low energy consumption, low operating cost, high degree of automation, and no acid-base discharge. Reverse osmosis technology is the most advanced, most effective and energy-saving membrane separation technology in the world. It is used together with the pre-treatment system. It has the advantages of advanced technology, simple operation, low operating cost, no pollution, convenient maintenance, etc. The pressurization of the pump and the retention of the reverse osmosis membrane can effectively remove impurities such as solid dissolved matter, organic matter, colloids, microorganisms and bacteria in the water. It has the advantages of wide application range, high degree of initiative, small land occupation, low energy consumption and good effluent quality.
Technical requirements and performance indicators SDI (contamination index) <5
PH value 2-11
Desalination rate 95-99%
Effluent PH value 5-7
Residual chlorine (mg/l) <0.1
Water temperature 4-45°C
Recovery rate 60-80%
Application industry
Boiler feed water, desalination equipment ------ various steam boilers, thermal power plants, water heaters, petrochemical boilers and other make-up water.
★ Reclaimed water and wastewater reuse equipment ------ reuse of water and wastewater in industrial fields such as petrochemical, steel, municipal, textile printing and dyeing.
★ Ultra-pure water equipment for the electronics industry ------ single crystal silicon, semiconductor wafer cutting manufacturing, semiconductor chips, semiconductor packaging, lead frames, integrated circuits, liquid crystal displays, conductive glass, picture tubes, circuit boards, optical communications, computers Pure water for production processes such as components, capacitors, clean products and various components.
★ General industrial pure water equipment-----coated glass, electroplating, surface coating, textile printing and dyeing, industrial dosing, industrial product cleaning and other water.
★ Pure water equipment for biomedical industry ----- injection, powder injection, large infusion, biochemical water, medical sterile water, oral liquid, etc. in line with GMP standards.
★ Pure water equipment for fine chemical industry ------ pure water for chemical process water, chemical agents, cosmetics, etc.
★ Water treatment equipment for beverage and food industry--- drinking pure water, distilled water, mineral water, natural water, mineralized water, beer production water, white wine blending with pure water.
★ Brackish water desalination and desalination equipment.
★ Membrane separation equipment - equipment for separation, recovery, concentration and purification of drugs.
★ Living drinking water treatment, hotels, buildings, community quality water supply equipment, direct drinking water projects.
