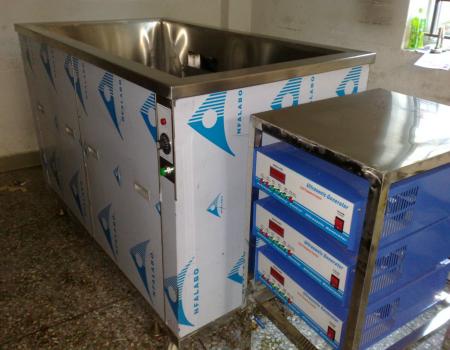

Product Name: Radiator Ultrasonic Cleaner
Product model: ZH-10108S
Main technical function
Effective size of cleaning tank (L×W×H): 1500×800×800mm
Dimensions (L × W × H): 1700 × 1300 × 1100mm (approx.)
Using the side impact method, 108 ultrasonic transducers are attached to each side of the rear of the tank. The transducer adopts American "IIE" brand, each 50W, the total ultrasonic power is 5400W, the ultrasonic frequency is 28KHZ, and it is equipped with a scanning circuit. The cleaning tank is made of imported SUS304 & 2.0mm thick stainless steel plate material, and the vibrating surface is made of imported SUS304 & 2.5mm thick stainless steel plate material. It has a separate drain.
Ultrasonic high frequency outlet: The ultrasonic generator is 5 meters away from the ultrasonic cleaning machine.
Ultrasonic generator: 3 sets
Main tank heating power: 18KW, specially customized stainless steel heating tube heating, heating tubes are separately separated, does not affect the effective size of the main tank, mechanical automatic constant temperature control RT0 °C-110 °C continuously adjustable, individually controlled.
With slot heating power: 6KW, special custom stainless steel heating tube heating, mechanical automatic constant temperature control RT0 °C-110 °C continuously adjustable, separate control.
Storage tank / circulation filtration system: (800 × 300 × 600 L × W × Hmm).
Set the filter circulation system with a filtration accuracy of 20μ. The cleaning solution can be used in the raw, reducing unnecessary waste and greatly reducing the cost of use! The southern brand stainless steel water pump is used with liquid level control. When the liquid level is insufficient, stop the pump/heater operation, with overflow port, heating system, mechanical constant temperature control device; oil-water separation device (this tank is brought by coarse washing tank to bring a large amount of oil and other pollutants to suspend On the surface of the solution, the surface pollutants can flow into the liquid storage tank through the oil-water separation device, and after filtering, they are driven into the cleaning tank for reuse.
The cleaning tank is made of imported SUS304, 2.0mm thick stainless steel plate material, and the chassis and bracket are made of stainless steel.
The equipment is equipped with three-phase main power switch, and the heating is controlled separately. The main electrical components of the equipment and the main control parts are high-quality imported parts.
The appearance of the equipment is beautiful, fine, convenient for maintenance and maintenance, and provides convenience for emergency.
The equipment is easy to maintain and maintain, and the cleaning tank is easy to clean.
Power supply: ultrasonic power supply single phase 220V/50HZ heating power supply three-phase four-wire 380V/50HZ
Note: Various non-standard model sizes can be customized according to customer requirements!
